Yield - Time Calculation
In many production environments, yield directly affects the overall production time. CompuTec ProcessForce automatically considers yield when planning resource quantities.
- The yield value defined in the Bill of Materials (BOM) header is used to calculate the planned resource quantity.

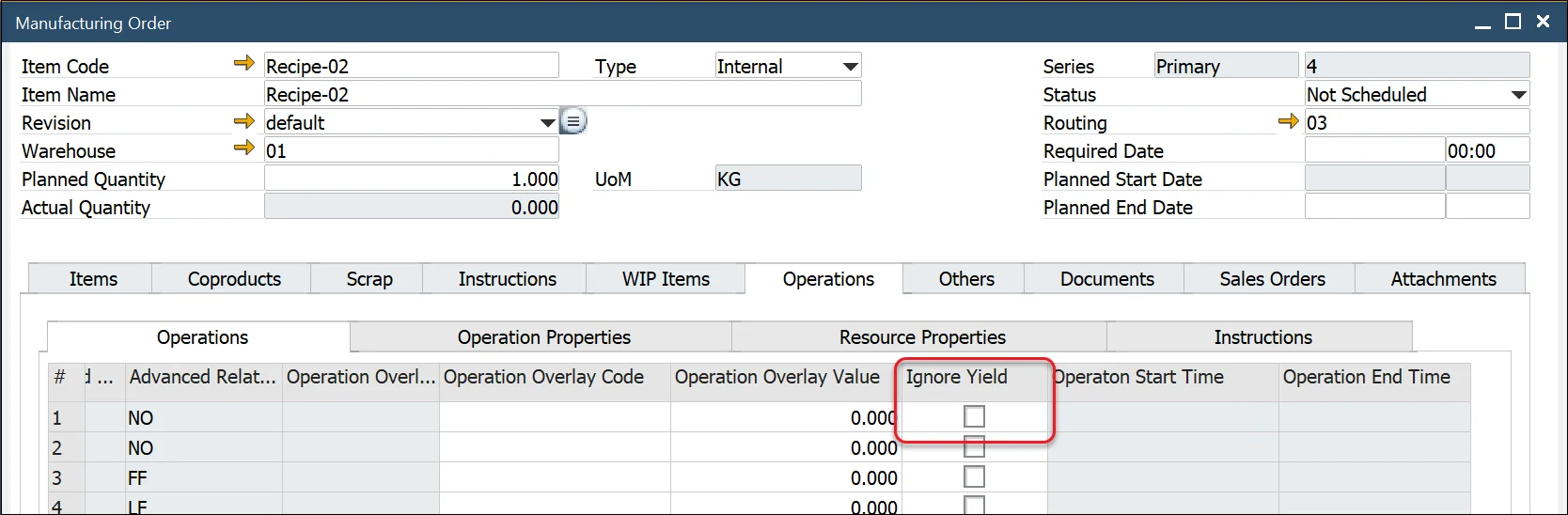

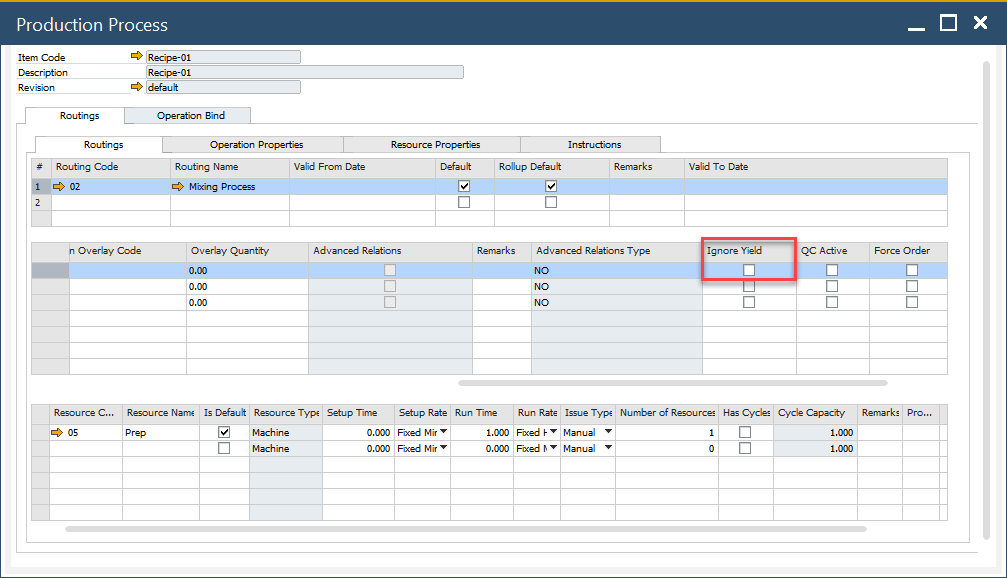

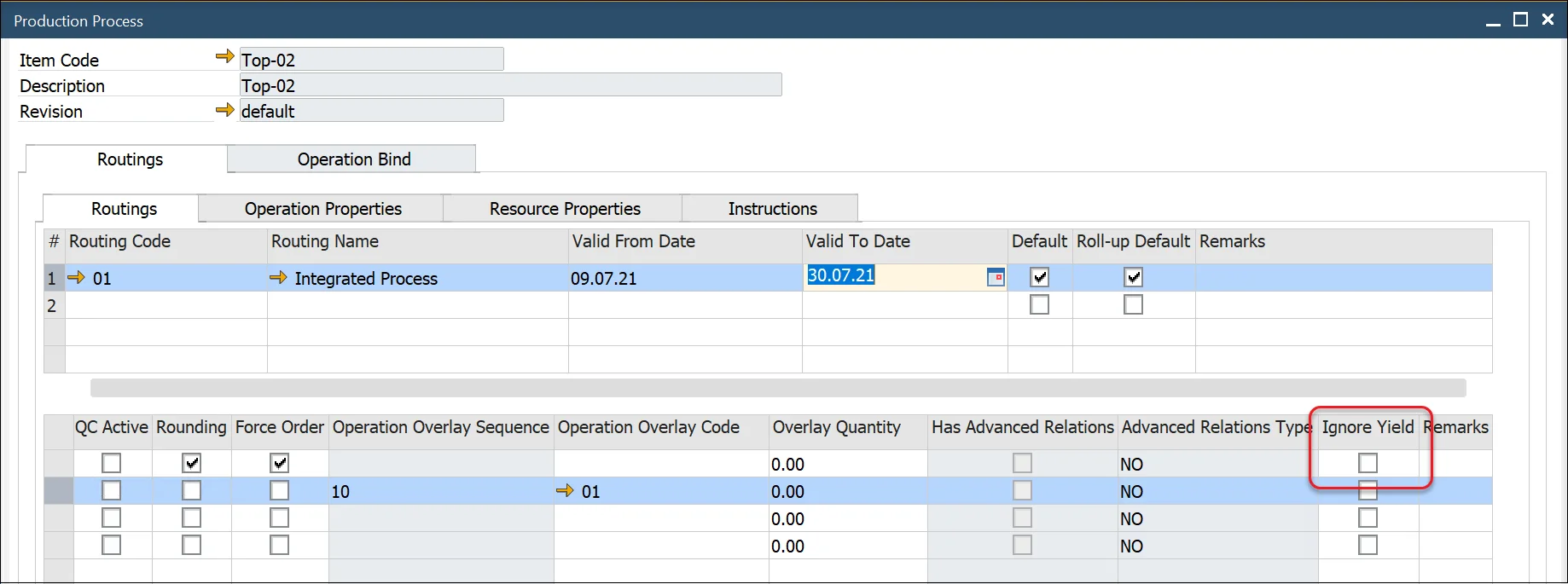

- When the Ignore Yield checkbox is selected, ProcessForce assumes a 100% yield, disregarding the actual yield percentage specified in the BOM.
Example Calculation:
If Yield = 80%, the system adjusts the planned resource quantity by 1.25 to meet the required output: (1/Yield% = 1/0.8 = 1.25). This ensures that additional resources are allocated to compensate for yield loss.

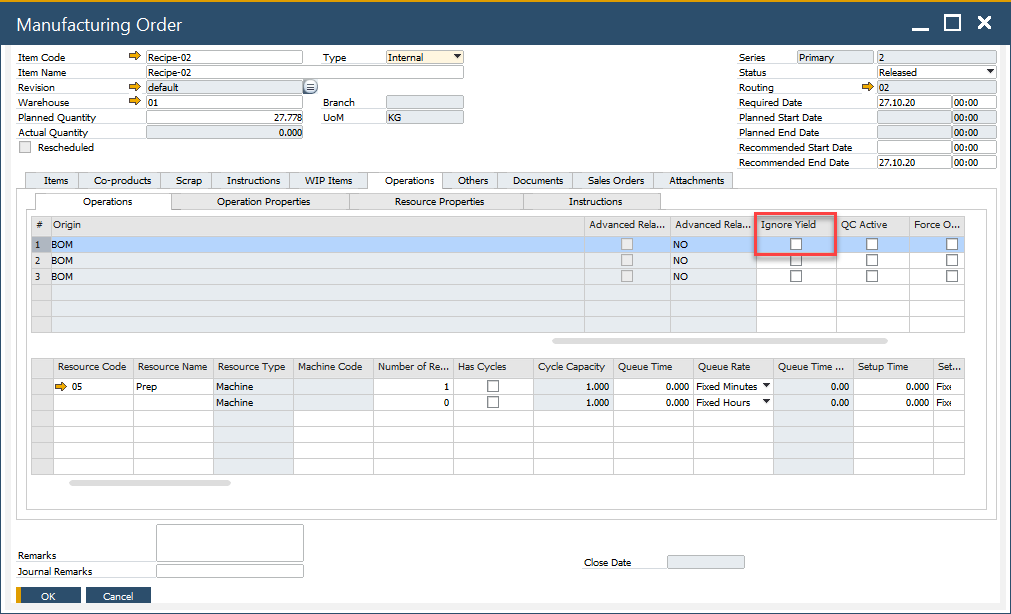

The yield value defined in the BOM is automatically copied to the Manufacturing Order.
