Quality Control Tests Pool
The Quality Control Tests Pool feature evaluates the overall pass/fail status of a group of quality tests. It does this by applying predefined acceptance rules to multiple individual samples. When enabled in a Test Protocol, the system automatically creates a series of linked Quality Control Tests, streamlining quality-assurance processes that involve multiple samples from the same lot.
A QC Tests Pool represents a group of individual tests conducted on different samples of the same material or batch. The pool passes or fails based on configurable acceptance criteria, including:
- The number of samples to be tested.
- The allowed number of nonconforming (failed) tests.
- Mandatory acceptance/rejection thresholds that control whether the QC Order may be released.
This mechanism helps ensure consistent evaluation of quality at the lot level, especially in regulated or high-volume environments.
Configuration

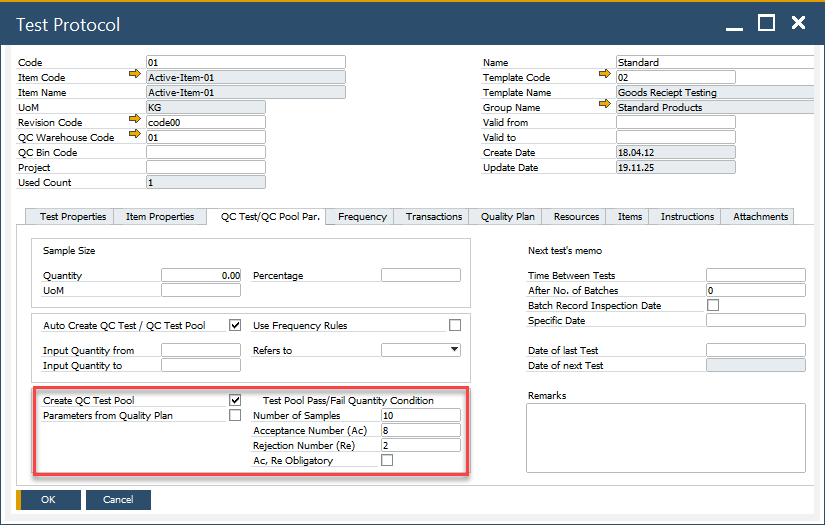

When defining a Test Protocol, configure the following:
- Create QC Tests Pool: Enables automatic generation of a QC Tests Pool when the protocol is used.
- Number of Samples: Specifies how many individual tests will be created in the pool.
- Test Pool Pass/Fail Quantity Condition: Defines the numerical relationship between passed and failed tests. Entering a value in one field automatically calculates the complementary value to match the total number of samples.
- Acceptance Number (Ac): The highest number of nonconforming units or defects in the sample that still allows the lot to be accepted.
- Rejection Number (Re): The lowest number of nonconforming units or defects in a sample that leads to the rejection of the lot.
- Ac. Re Obligatory: Determines whether the Acceptance and Rejection numbers are mandatory for releasing the QC order. If unchecked, the final result can be adjusted manually.
- Parameters from Quality Plan: Inherits configuration from the Quality Plan. click here to find out more about Quality Plan.
Usage
To access Quality Control Test Pool, navigate to:
Quality Control → Quality Control Test Pool
To use this function:
-
Open the Quality Control Test Pool form.
-
Select the pre-configured Test Protocol.
-
Choose the required Transaction Type to determine the inventory flow stage for the tests.
-
Select the corresponding document based on Series and Document Number.
The system then:
- automatically fills item details.
- calculates the Acceptance and Rejection numbers fields.
- generates the list of individual tests based on the Number of Samples.
-
Click Add after entering all required fields. After saving, you can open and review each individual test generated as part of the pool.
